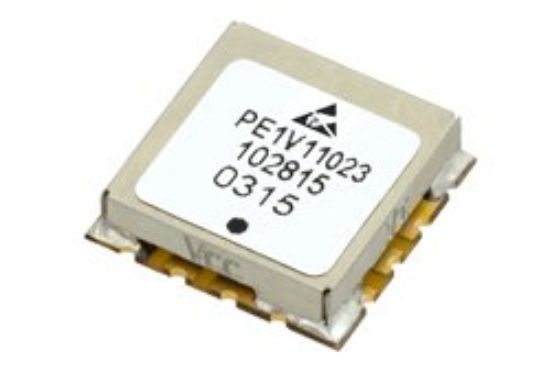

表面贴装 (SMT) 压控振荡器 (VCO) ，2.57 GHz ~3.3 GHz，相位噪声 -82 dBc/Hz，0.5 英寸封装

Surface Mount (SMT) Voltage Controlled Oscillator (VCO) From 2.57 GHz to 3.3 GHz, Phase Noise of -82 dBc/Hz and 0.5 inch Package

The PE1V11023 is a High Reliability Low Noise Voltage Controlled Oscillator (VCO) which covers a 2570 MHz to 3300 MHz frequency band with a voltage tuning range from 0.0V to 10V.  This design features exceptional phase noise performance of -82 dBc/Hz @ 10 kHz offset.  Supply Voltage is +15V with a generated output power level of +5.0 dBm and 2nd harmonic output of -15 dBc typical.  The assembly is RoHs compliant and available in a compact 0.5 inch SMT package with an industry standard mounting footprint.  The bottom surface is copper clad with 2-5 micro inches of immersion Gold over 150 - 250 micro inches of Electro less Nickel which makes it resistant to oxidation for ease of soldering. The VCO operates over a temperature range of -40°C to +85°C and is designed to meet a variety of MIL-STD-202 test conditions including Humidity, Shock, and Vibration.
